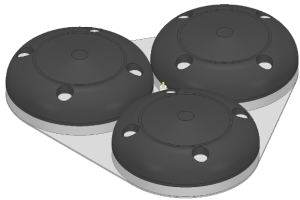

GNSSA 3-E DCP

Active Three-Element Dual Circularly Polarized Antenna Array for Robust GNSS Applications

The antenna array is composed of three active antenna elements with dual circular polarization and can be used for digital beamforming and null-steering in the entire GNSS frequency range. Iridium signals are also supported.

An integrated calibration circuit enables to compensate any magnitude and phase drift between the channels.

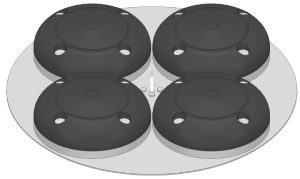

The design is customizable (see below) and can be tailored to meet specific user requirements.

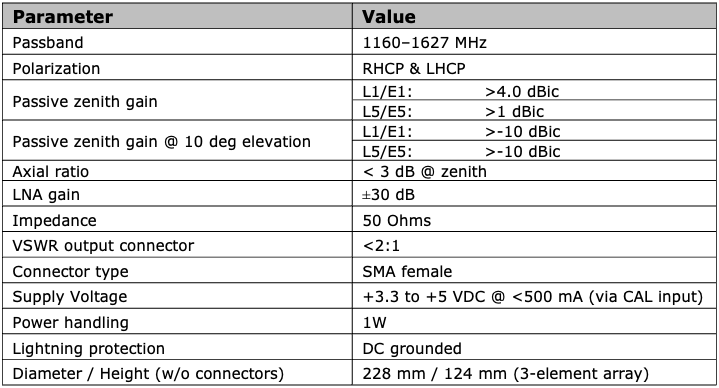

Technical Data

Simulated Radiation Patterns (single element)

Technology licensed by Fraunhofer IIS
